How to makes Changes in LAN connection in RC500 device

To make changes in your LAN connection on your RC500 device, please follow the steps below:

1. Log in to your PhoneMDM account at phonemdm.com.

2. Click the below shown Icon to get into the settings of the required device.

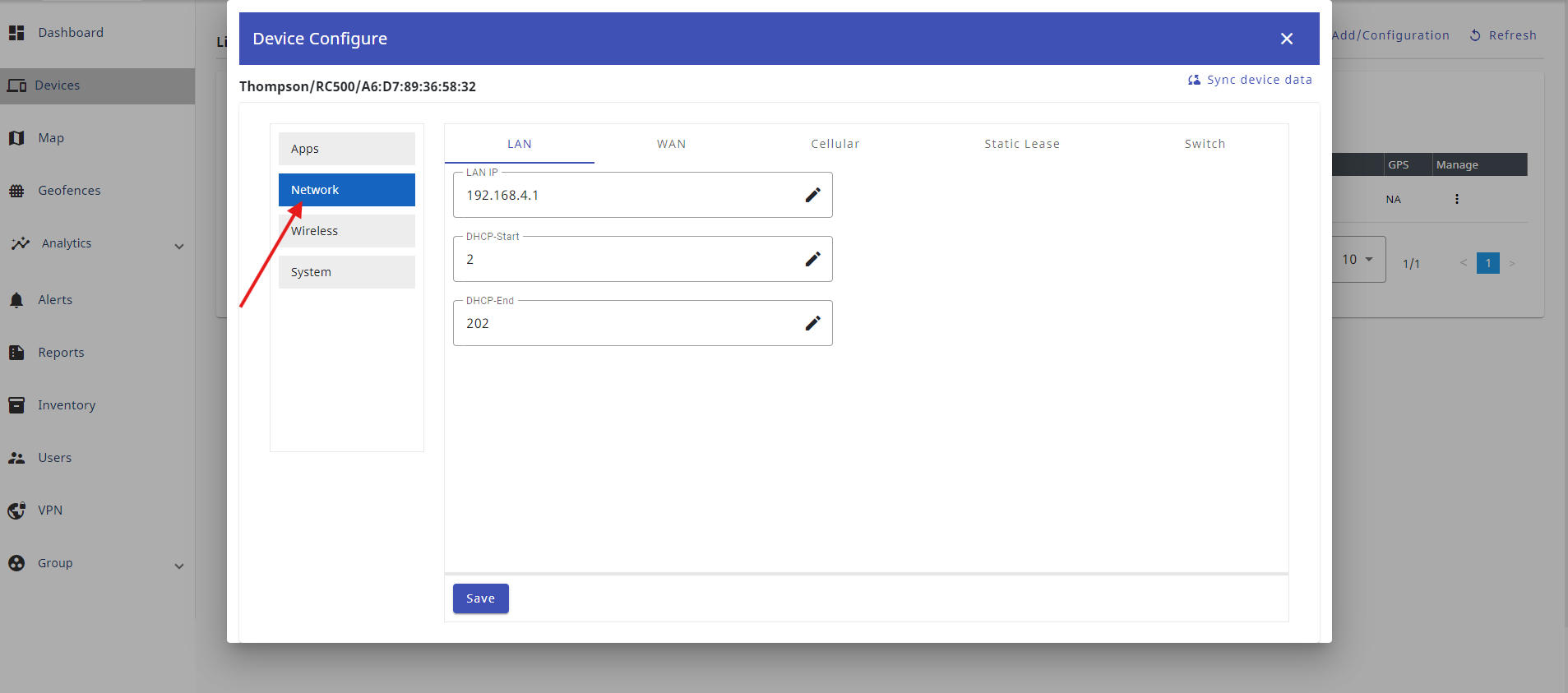

 3. After accessing the device configuration settings, select the Network option, which is the second section on the left side.

4. In the Network section, you will see options like LAN, WAN, Cellular, Static Lease, and Switch. Click on LAN to access the LAN page to set up the LAN connection.

5. In the LAN settings section, you have the following options:

• LAN IP: A default IP address is provided here. You can modify the LAN IP address by entering a new one in this field.

• DHCP Start: Enter the starting address for the DHCP range in this field. The default starting value is 2.

• DHCP End: Enter the ending address for the DHCP range in this field. The maximum allowable value is 254.

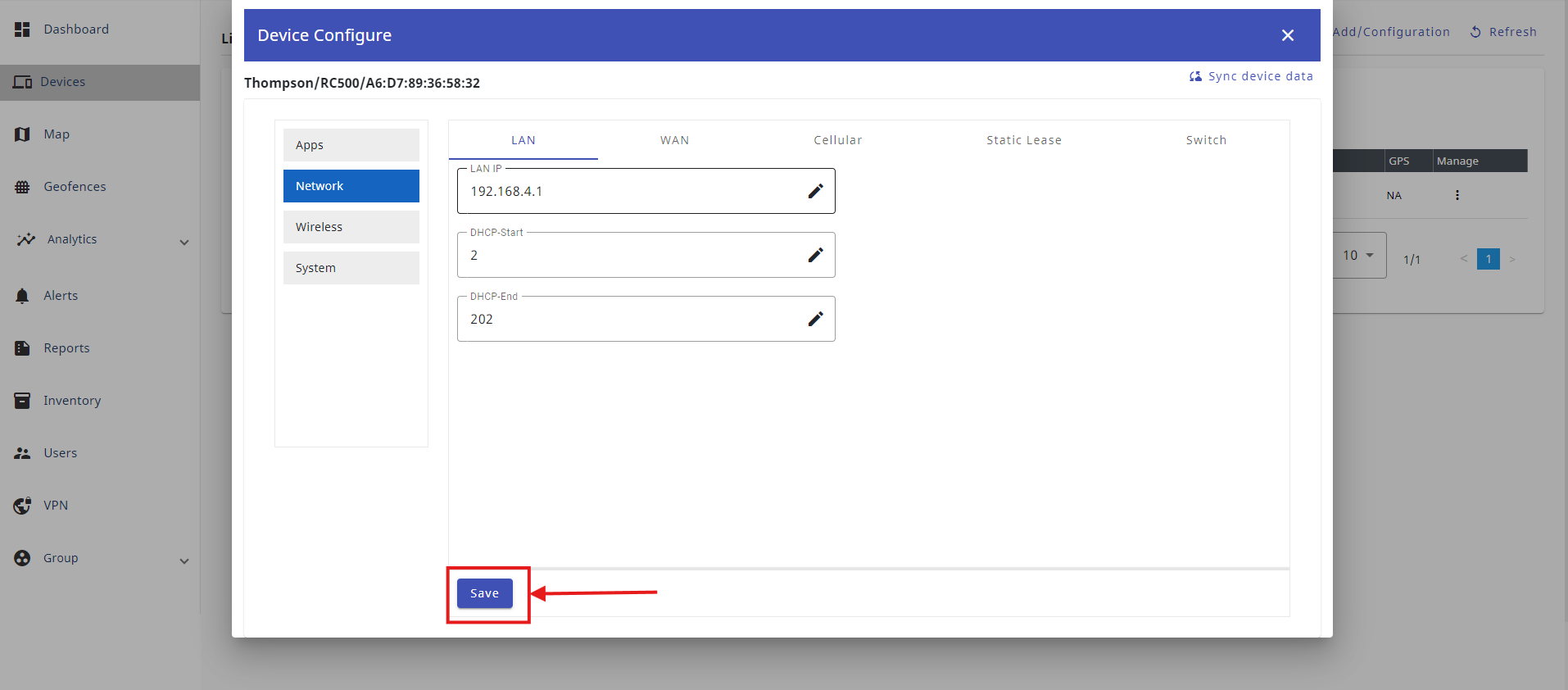

6. After entering or modifying the LAN connection settings, click the "Save" button to apply your changes. Your LAN connection will then be ready for use.
