How to add Static lease in local web page

How to add Static lease in local web page

1. Open a web browser and enter the URL 192.168.4.1 to access the login page of the RC500 router.

2. If you are logging in for the first time, use the default credentials:
  • Username: celestial
  • Password: hellotickiot




3. Select the Network option to access the available network settings.

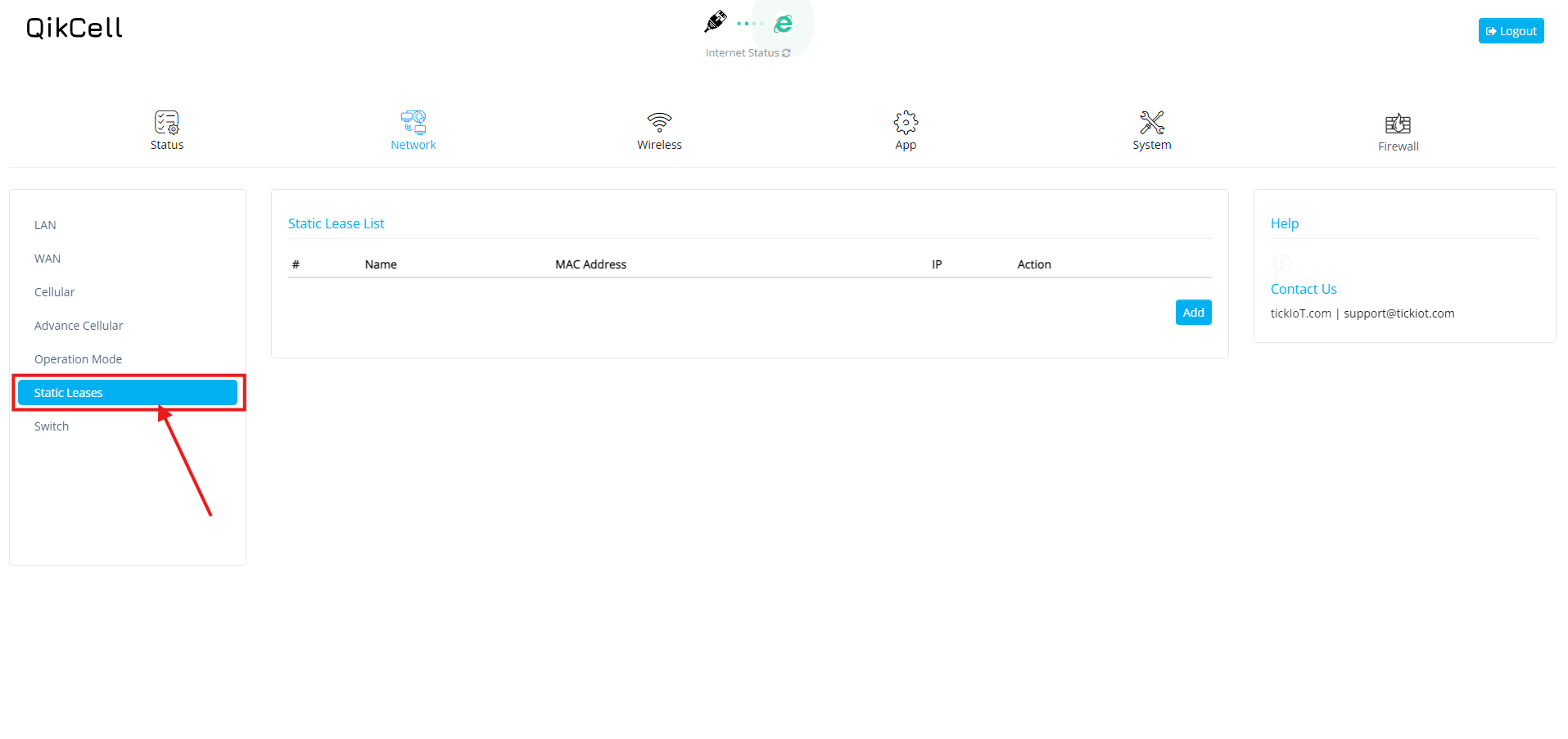

4. In the Network settings, select Static Leases.

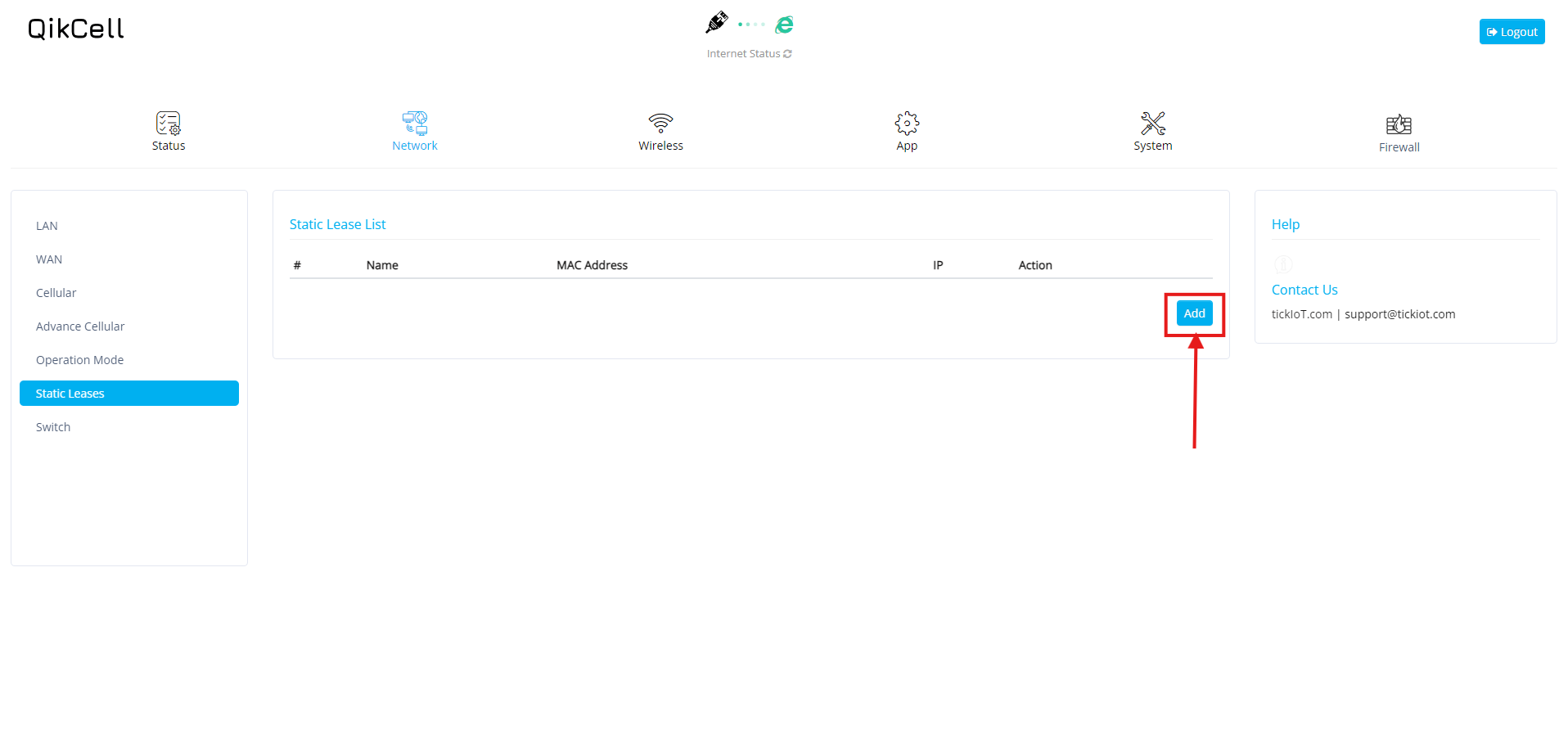

5. Choosing the Static Leases option will navigate you to the Static Lease List page. To add a new static lease, simply click the Add button.

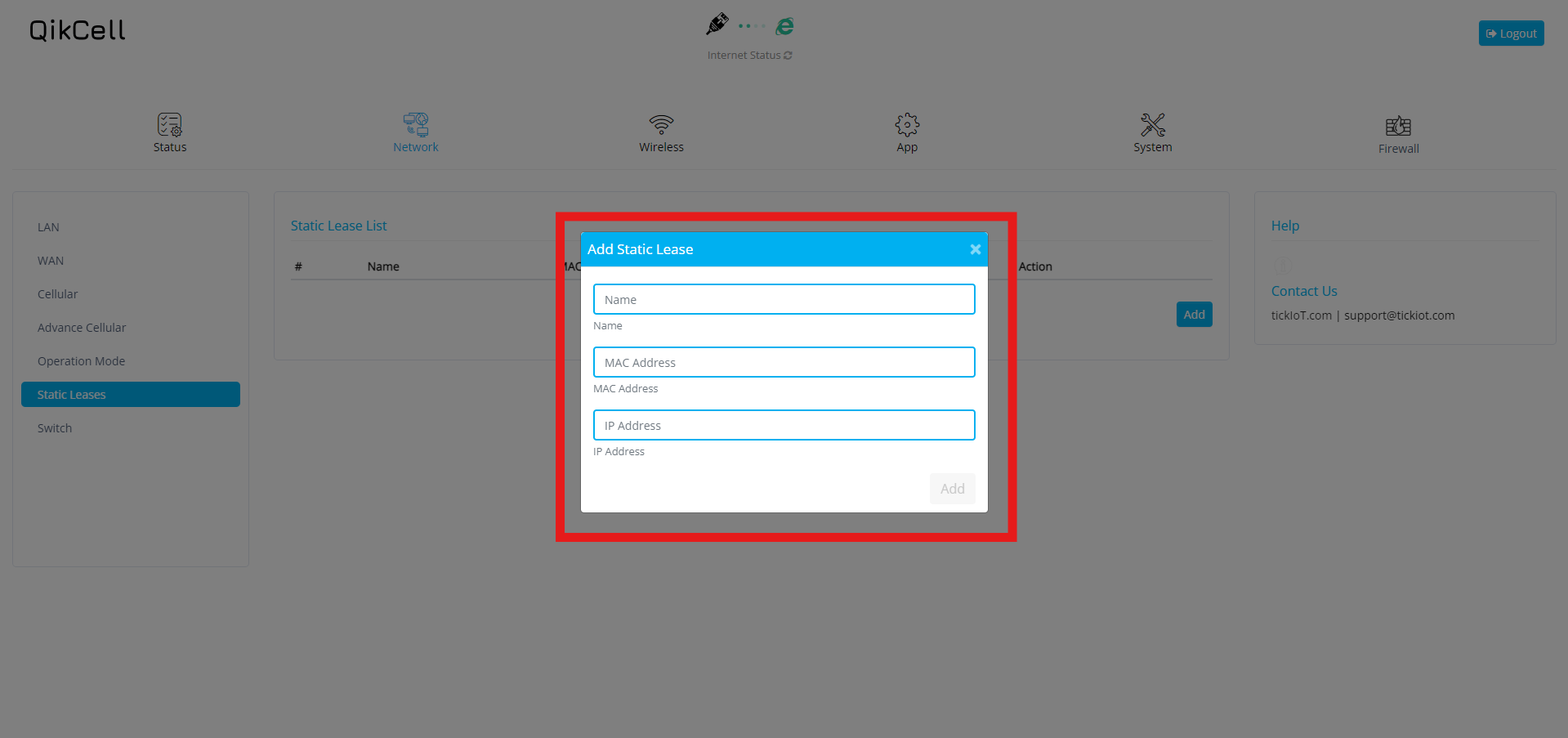

6. Clicking the Add button will open a popup window for adding a new device. In this window, you will need to provide the following details:
  • Name: Enter the name of the device.
  • MAC Address: Input the device’s MAC address.
  • IP Address: Specify the IP address to assign to the device.

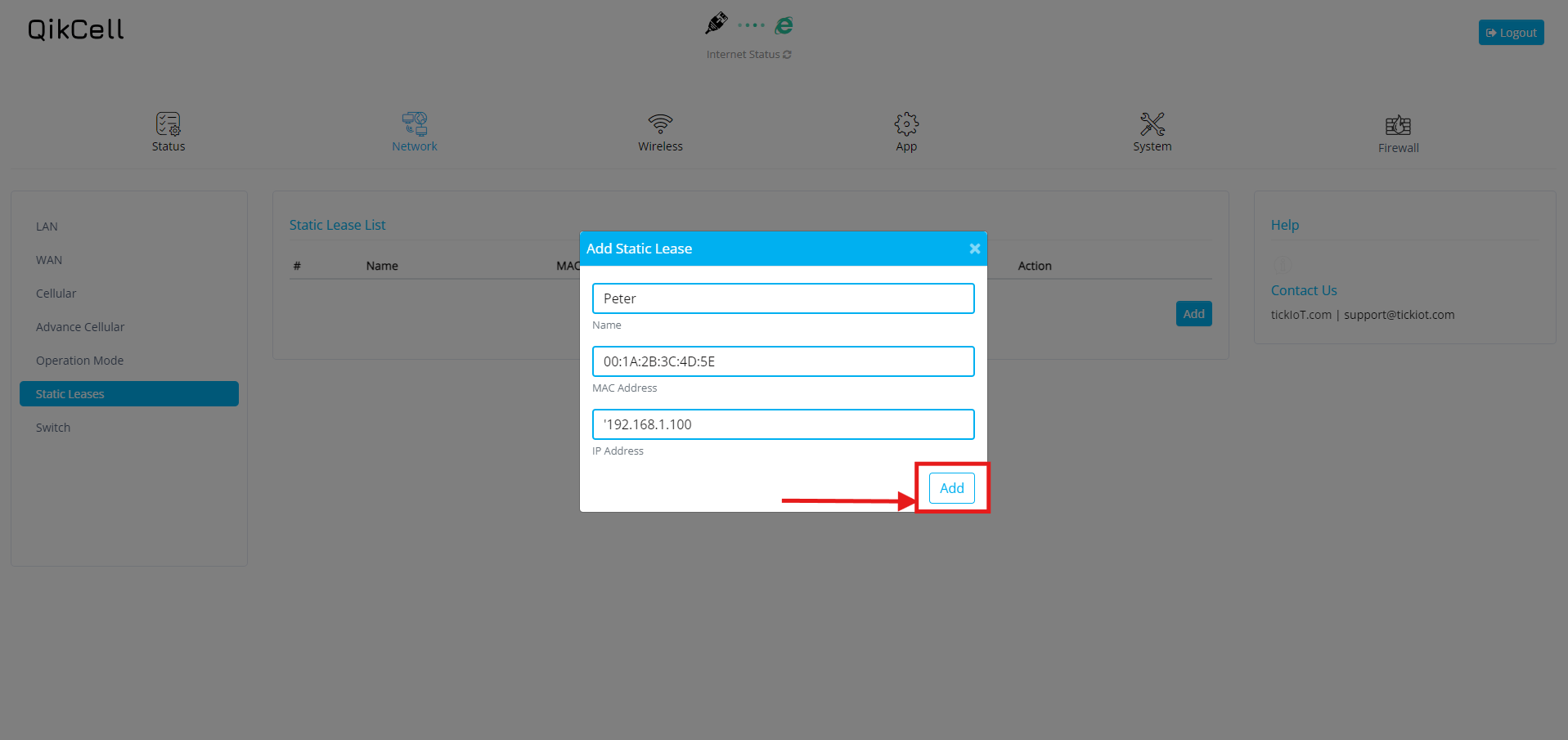

For example, to add a device named 'Peter', with MAC address '00:1A:2B:3C:4D:5E' and IP address '192.168.1.100', enter these values into the respective fields in the popup.







7. After entering the necessary data to add the static lease, click the Add button to complete the process and successfully add the lease.

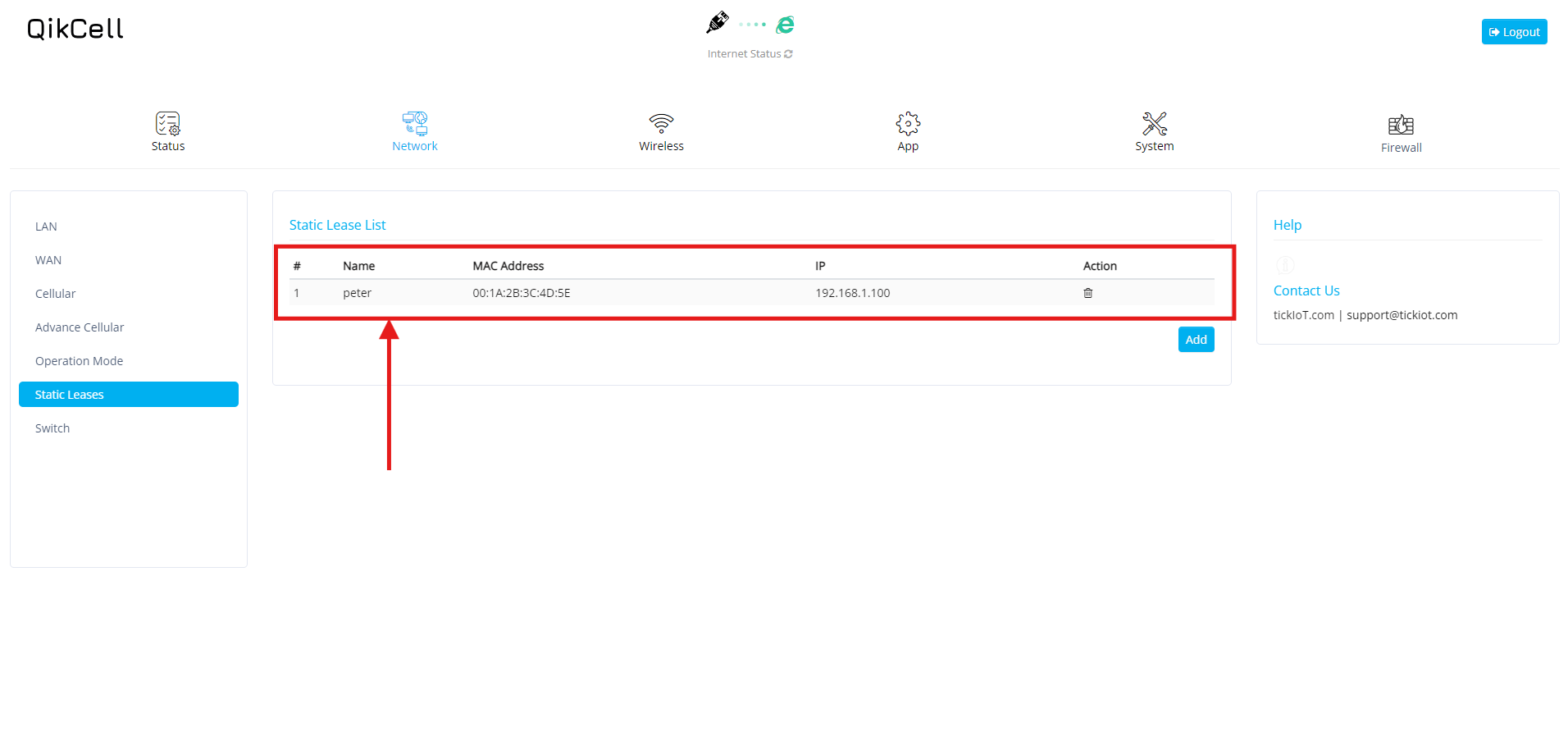

8. The newly added static lease will now appear in the Static Lease List.
