How to Add Port Forwarding in PhoneMDM

How to Add Port Forwarding in PhoneMDM

1. Log in to your PhoneMDM account at phonemdm.com.

2. Click the below shown Icon to get into the settings of the required device.

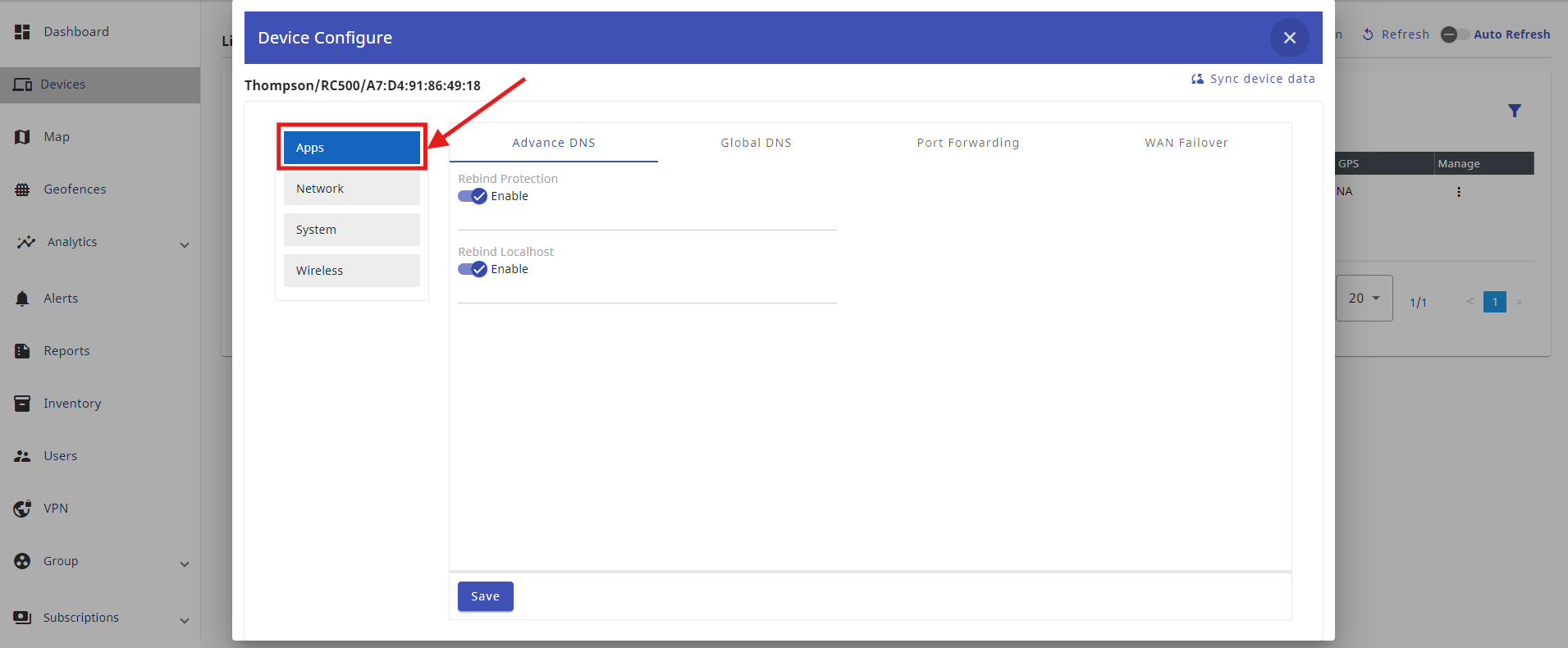

3.Once you have accessed the device configuration settings, navigate to the 'Apps' section to manage and configure the available Apps settings.

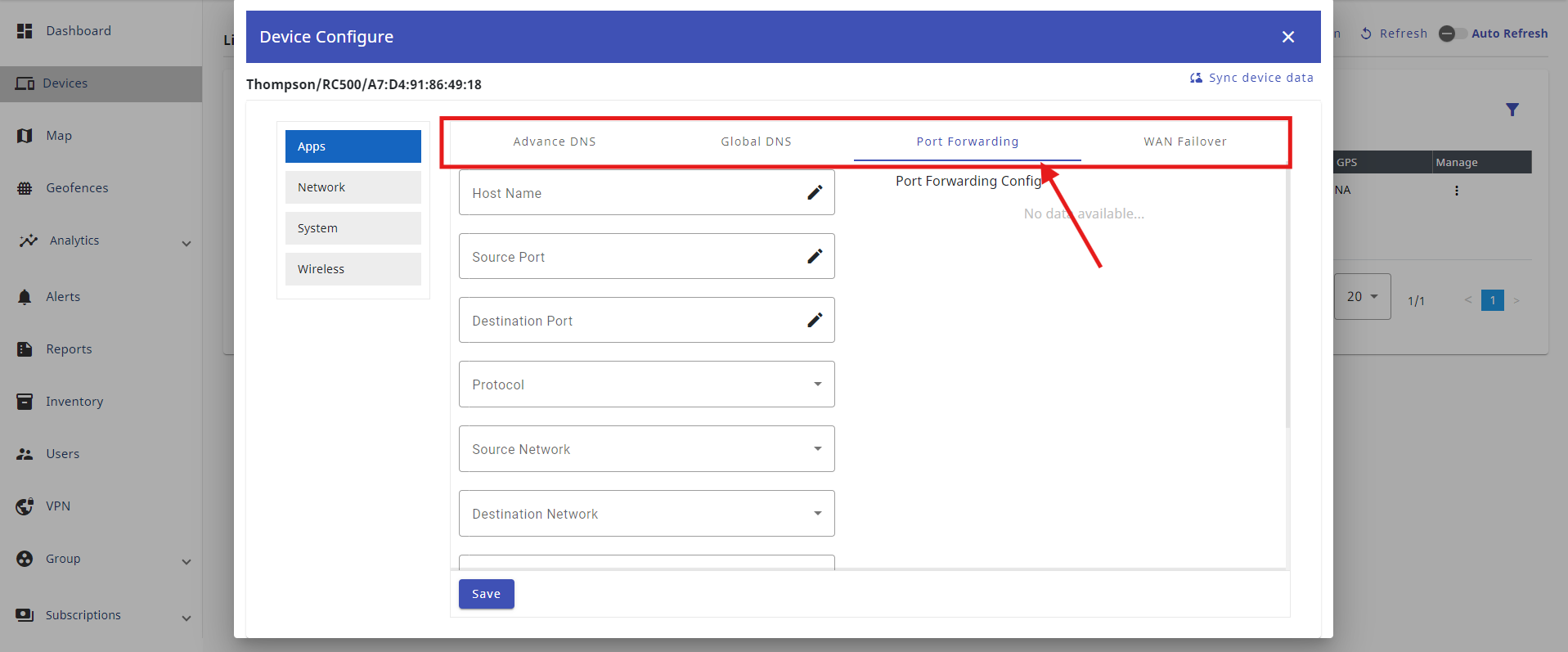

4. In the Apps section, you will see four options: Advanced DNS, Global DNS, Port Forwarding, and WAN Failover. Select Port Forwarding to access its settings and add the Port Forwarding configuration to your router

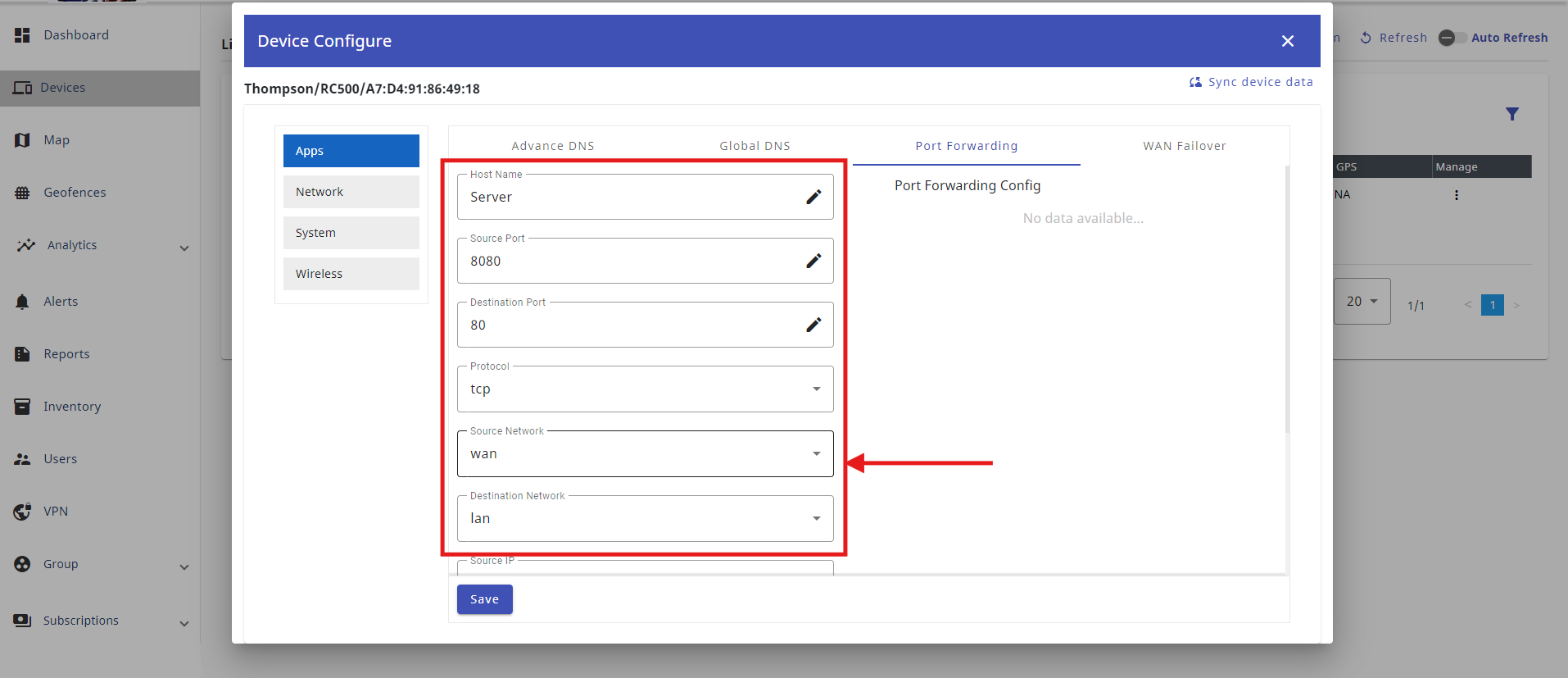

5. To add Port Forwarding, you will need to provide the following required details:
  • Host Name: Specify the name of the device (e.g., "Server-1").
  • Source Port: Enter the port number from which the traffic originates (e.g., "8080").
  • Destination Port: Enter the port number where the traffic is directed (e.g., "80").
  • Protocol: Select the applicable protocol (e.g., "TCP" or "UDP").
  • Source Network: Choose between LAN or WAN for the originating network.
  • Destination Network: Choose between LAN or WAN for the destination network.
  • Source IP: Enter the IP address from which the traffic originates (e.g., "192.168.1.10").
  • Destination IP: Enter the IP address where the traffic will be sent (e.g., "192.168.1.20").
  • Port Forwarding Enable/Disable Switch: Toggle this switch to enable or disable the port forwarding rule.

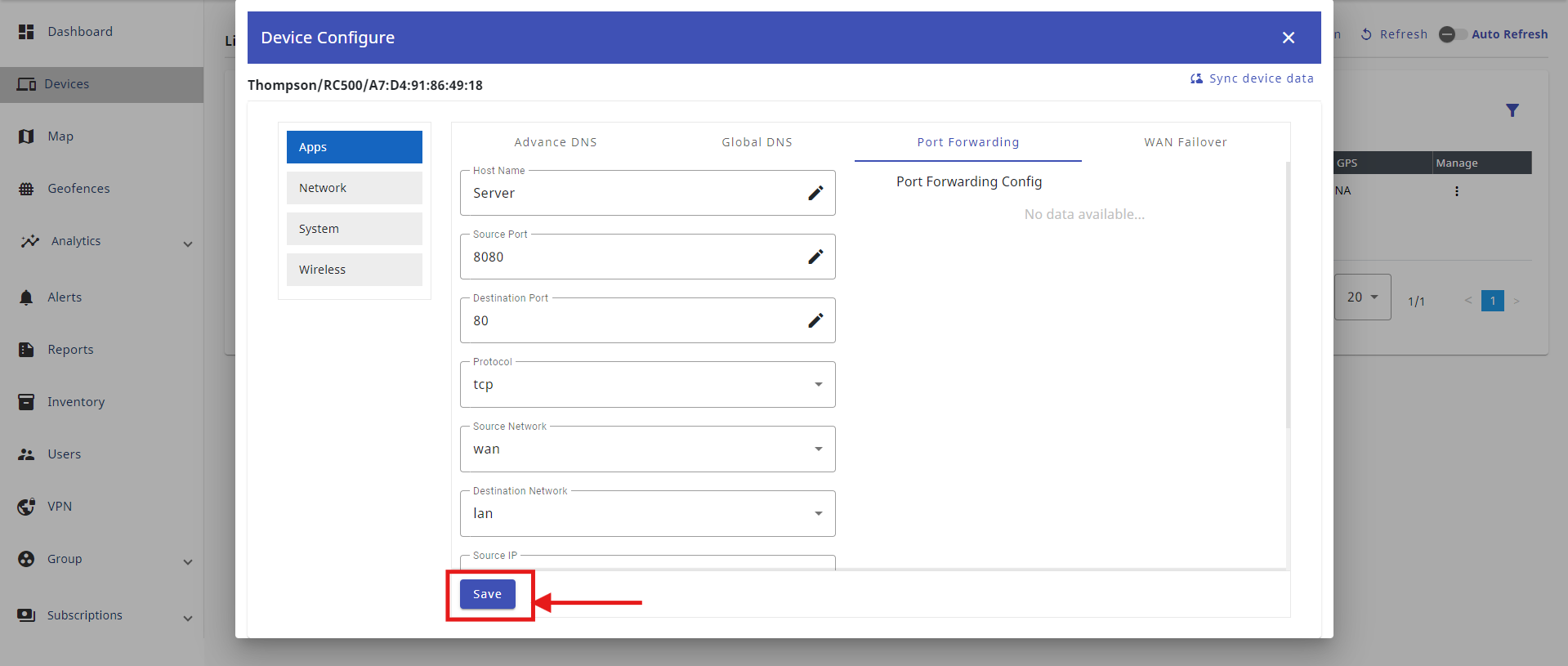

6. After entering all the required details to add the Port Forwarding, click the Save button to apply and save the Port Forwarding configuration.
