How to Add Static lease on RC500

How to Add Static lease on RC500

To Add Static lease on the RC500, please follow these steps:


1. Log in to your PhoneMDM account at phonemdm.com.

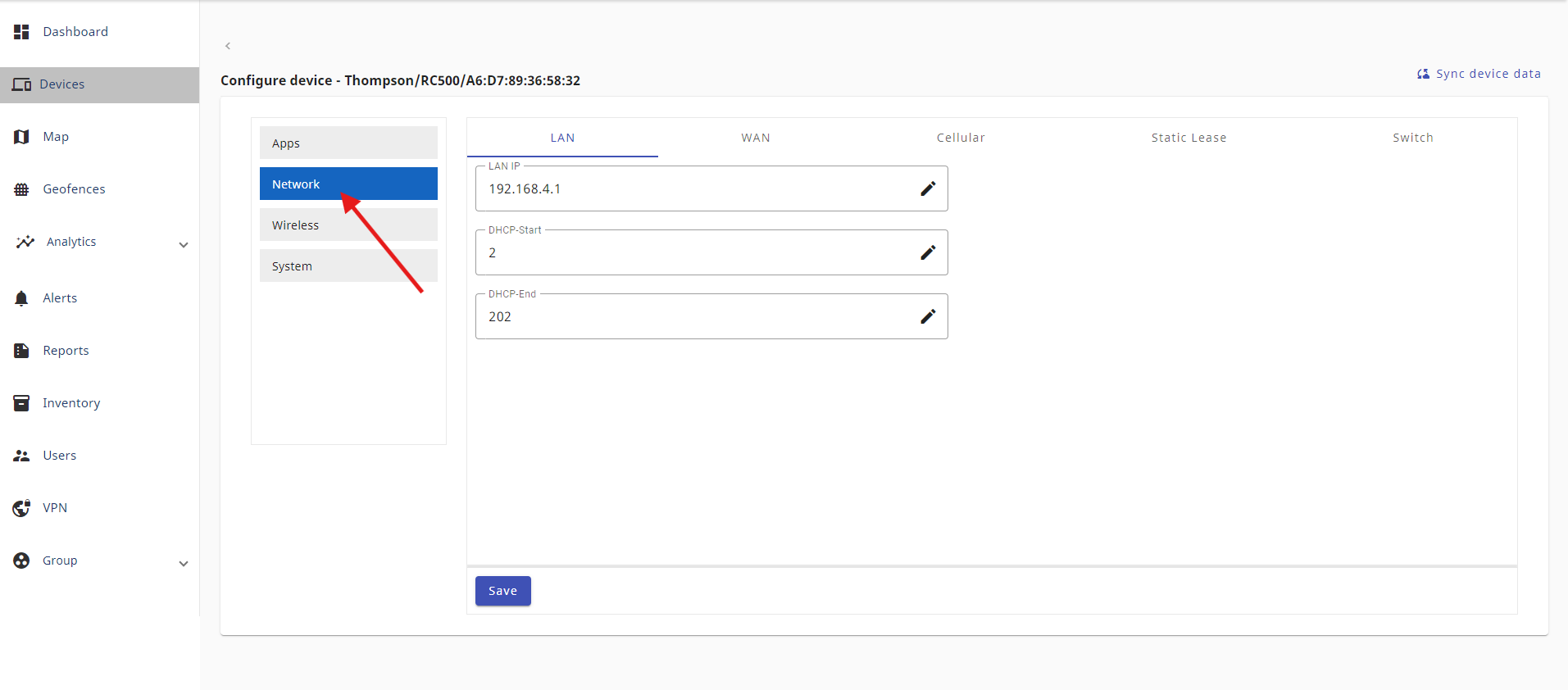

2. Click the below shown Icon to get into the settings of the required device.




 3. After accessing the device configuration settings, select the Network option, which is the second section on the left side.

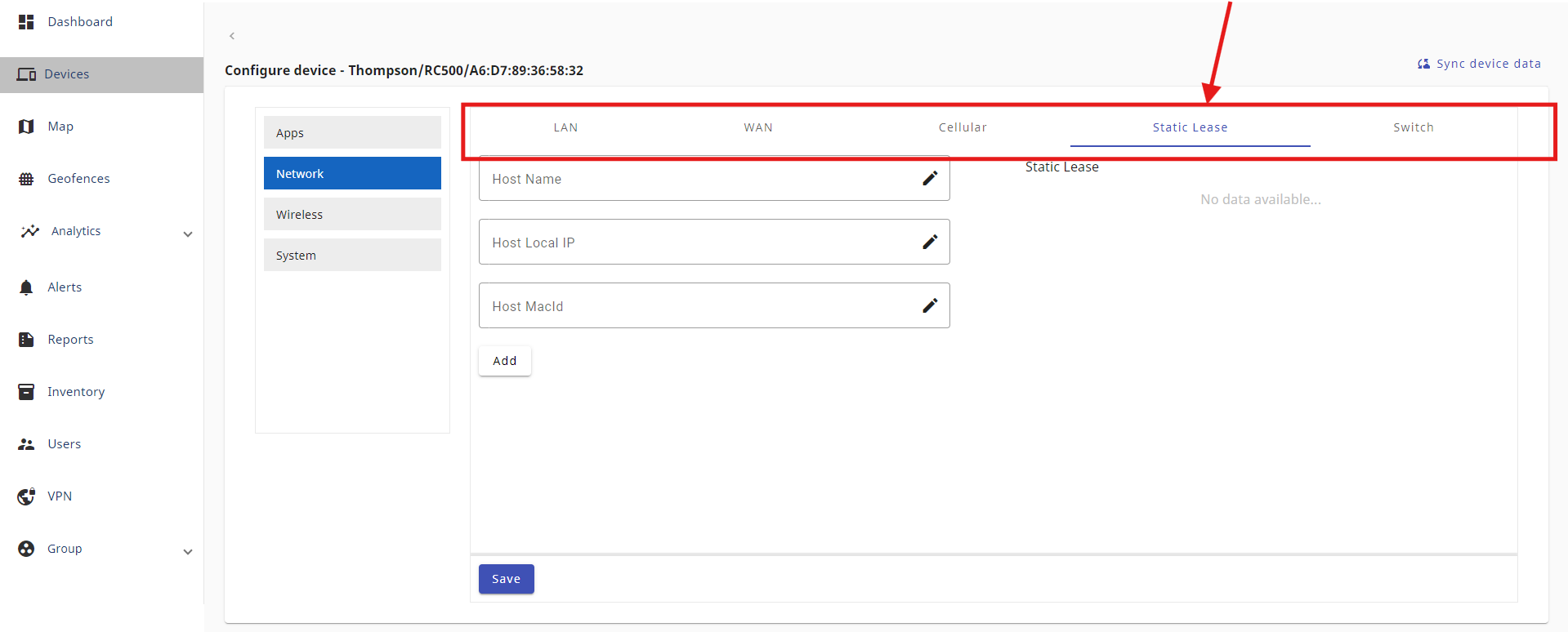

4. In the Network section, you will see options like LAN, WAN, Cellular, Static Lease, and Switch. Click on Static Lease to access the static lease page and add the desired static lease to the list.

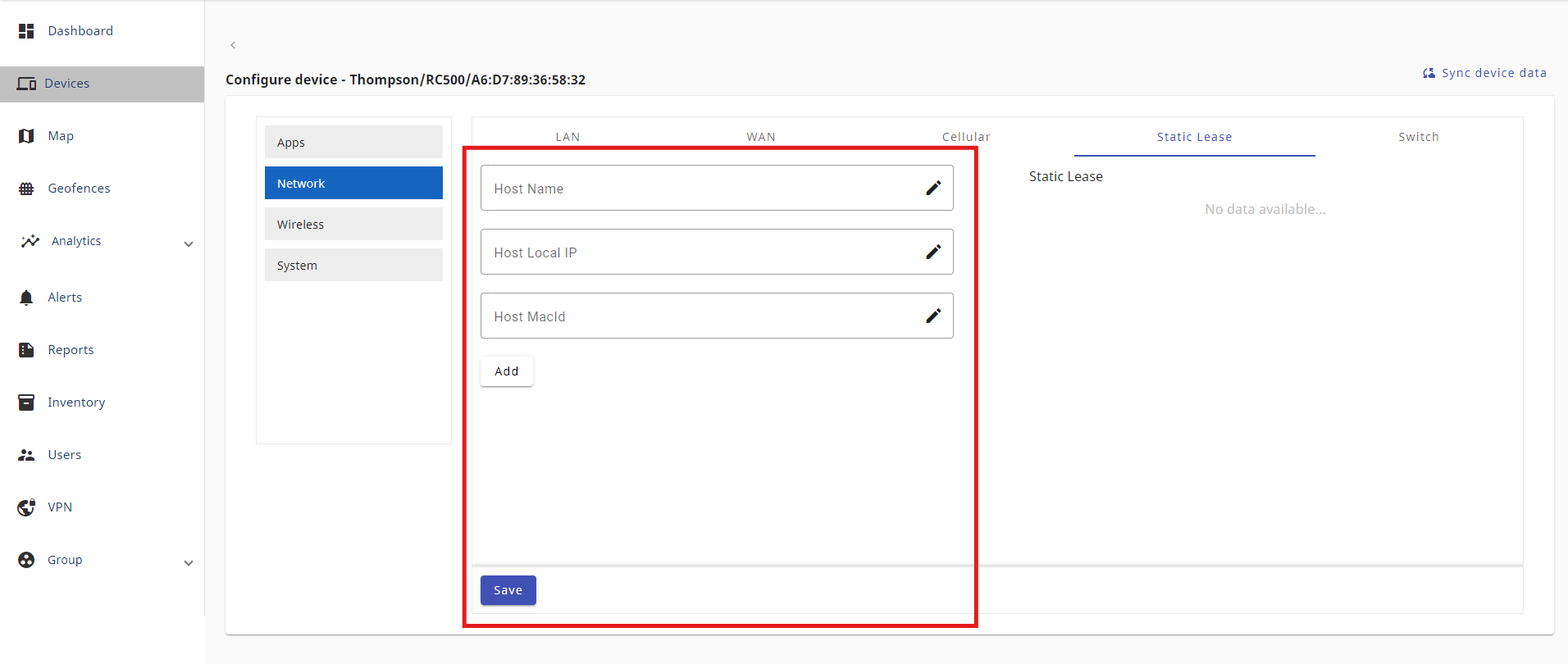

5. In the Static Lease section, the available options include:
  • Host Name: Enter the host name into this field.
  • Local IP: Please specify the valid local IP address of the host here.
  • Host MAC ID: Provide the valid MAC ID of the host in this field.
​

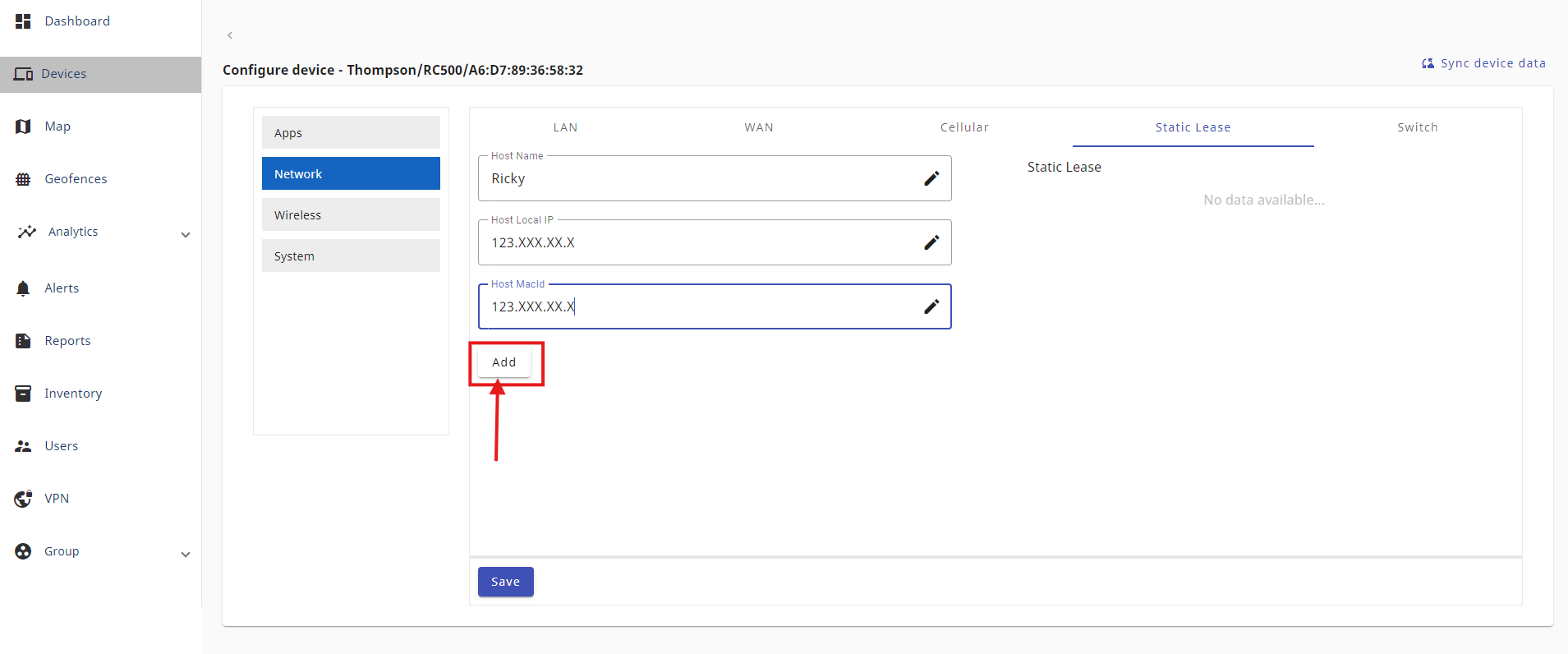

6. After entering all the required data for the static lease, click on the "Add" button located on the static lease page, as illustrated in the accompanying picture.

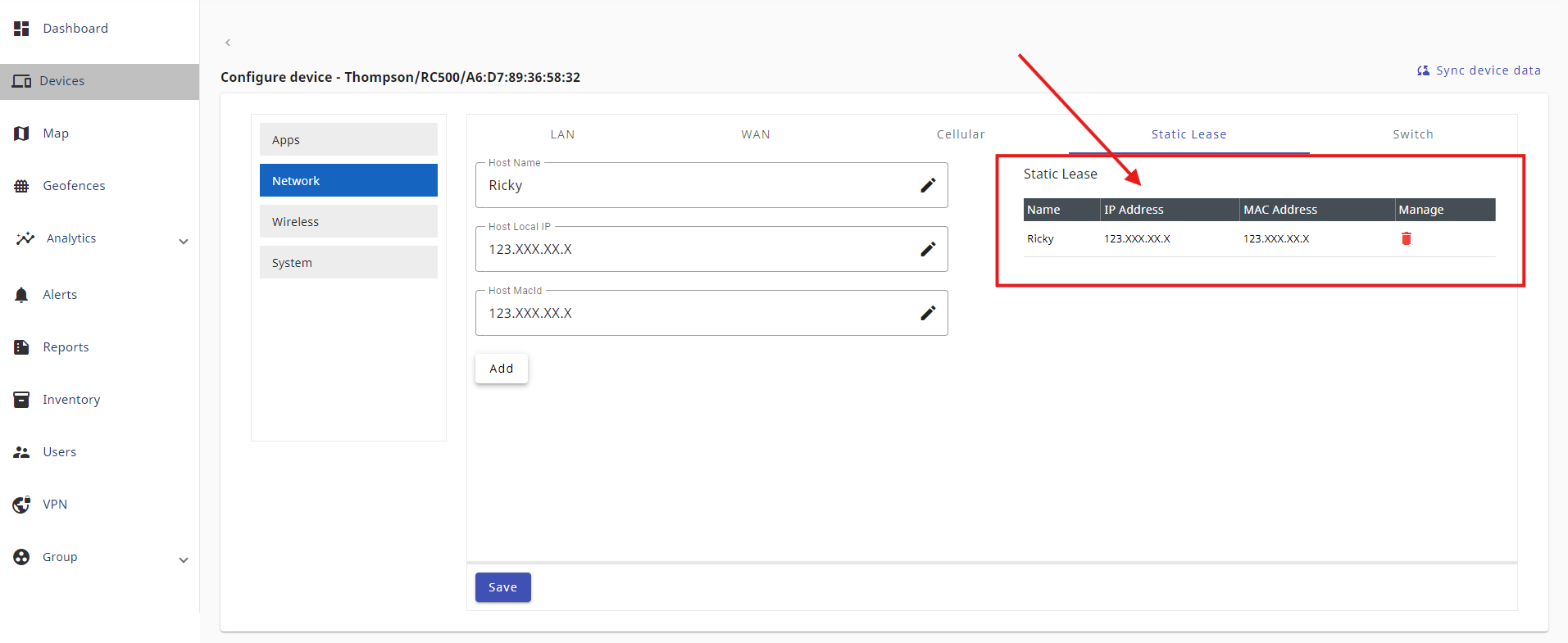

7. By clicking the "Add" button, you can successfully add the static lease to the static lease page, as depicted in the accompanying picture.

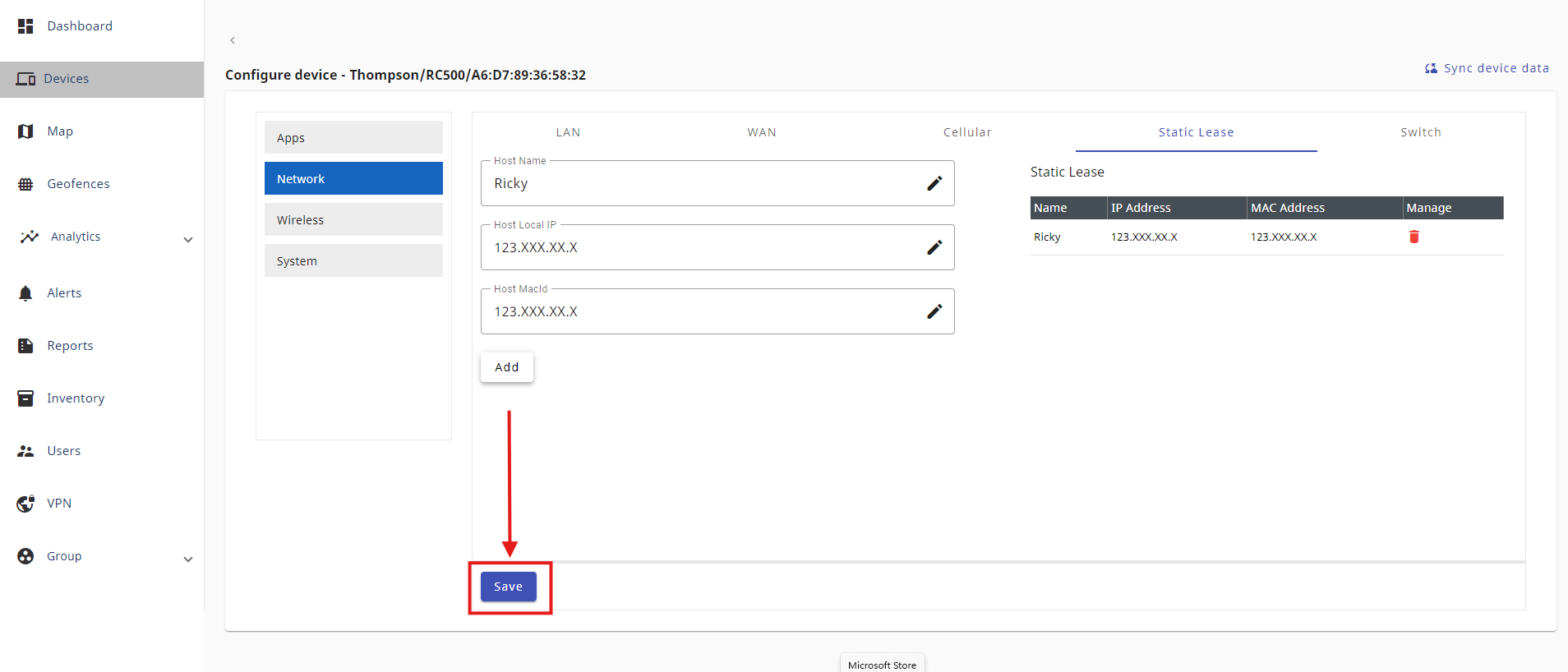

8. After adding the static lease, click the "Save" button to store the added static lease, and you are now ready to use the newly added static lease.
