How to change settings of Power LED.

How to change settings of Power LED.

1. Log in to your PhoneMDM account at phonemdm.com.

2. Click the below shown Icon to get into the settings of the required device.

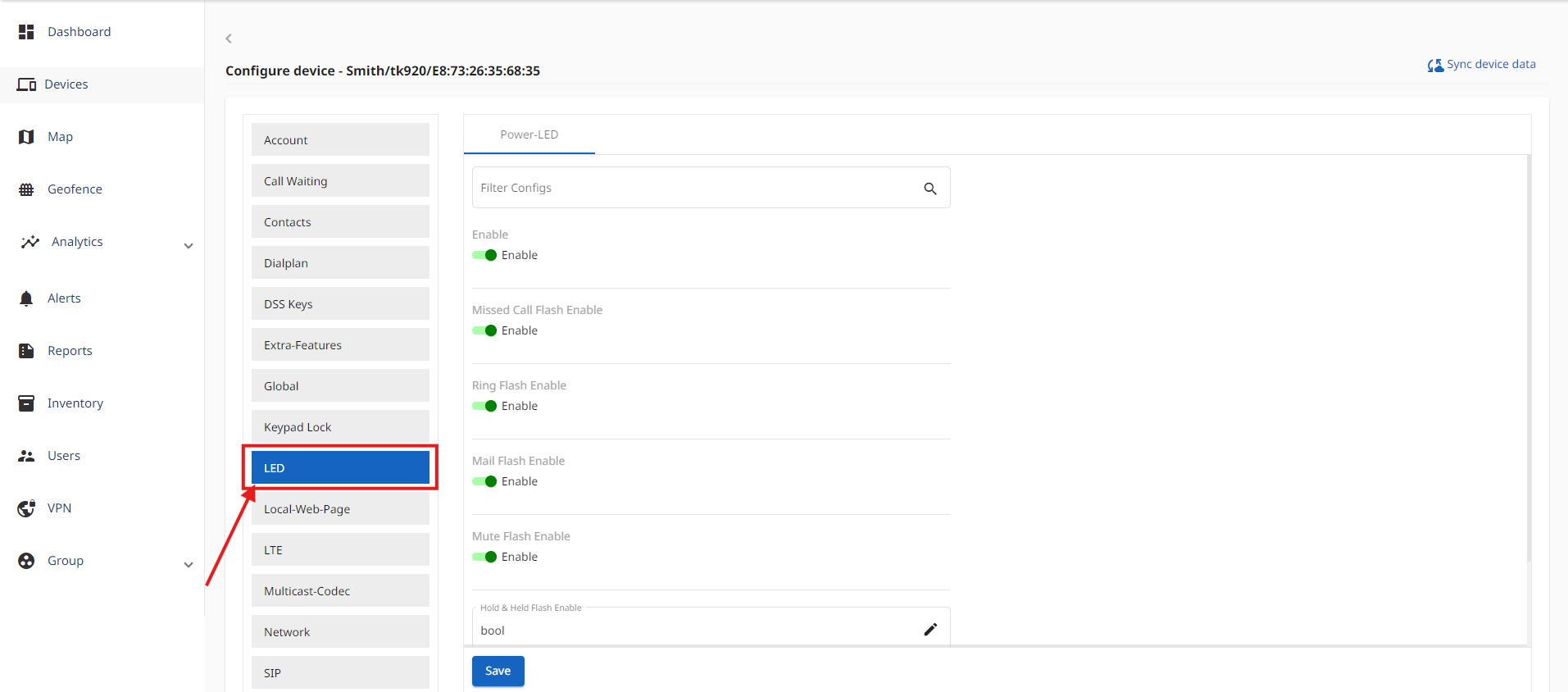

 3. After accessing the device configuration settings, select the LED option, which is the Ninth section on the left side.



4. In the LED page, there is a section called Power-LED. The Power-LED section includes the following sub-options:
  • LED Enable Switch: Allows you to enable or disable the Power-LED feature. Example: Toggle this switch to "On" to enable the Power-LED.
  • Missed Call Flash Enable Switch: Enables the LED to flash when there is a missed call. Example: Toggle this switch to "On" to activate the missed call flash notification.
  • Ring Flash Enable Switch: Enables the LED to flash when the phone is ringing. Example: Toggle this switch to "On" to activate the ring flash notification.
  • Mail Flash Enable Switch: Enables the LED to flash when a new email is received. Example: Toggle this switch to "On" to activate the mail flash notification.
  • Mute Flash Enable Switch: Enables the LED to flash when the phone is on mute. Example: Toggle this switch to "On" to activate the mute flash notification.
  • Hold & Held Flash Enable: This feature allows the LED to flash when a call is placed on hold or is currently being held, providing a visual indication of the call status.
  • Talk & Dial Flash Enable Switch: This switch enables the LED to flash during an active call or while dialing, providing a visual cue that the phone is in use. Toggle this switch to "On" to activate this feature.




5. After configuring all the required settings in the Power-LED section, click on the Save button to apply the changes.
