To configure the Certificates in the RCVx3 device, please follow the steps outlined below.

1. Open a web browser and enter the URL of the RCVx3 device: 192.168.3.1.

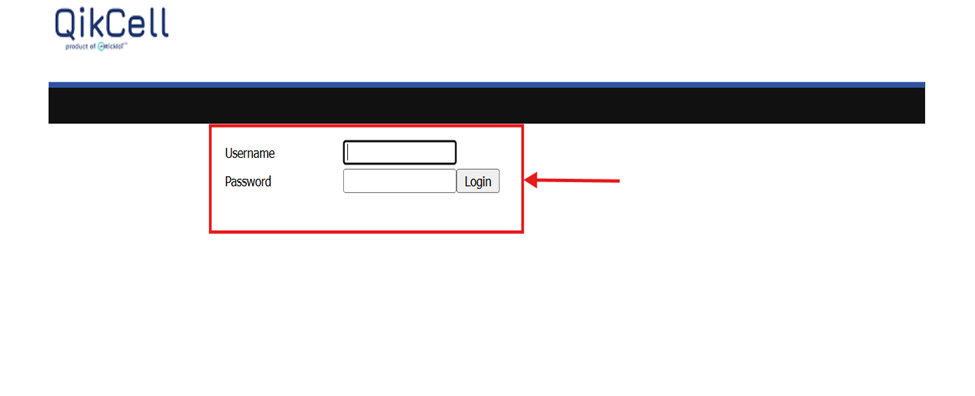

2. If you are logging in for the first time, use the default credentials:

Username: celestial

Password: hellotickiot

3. Select Administration from the Local Web Page.

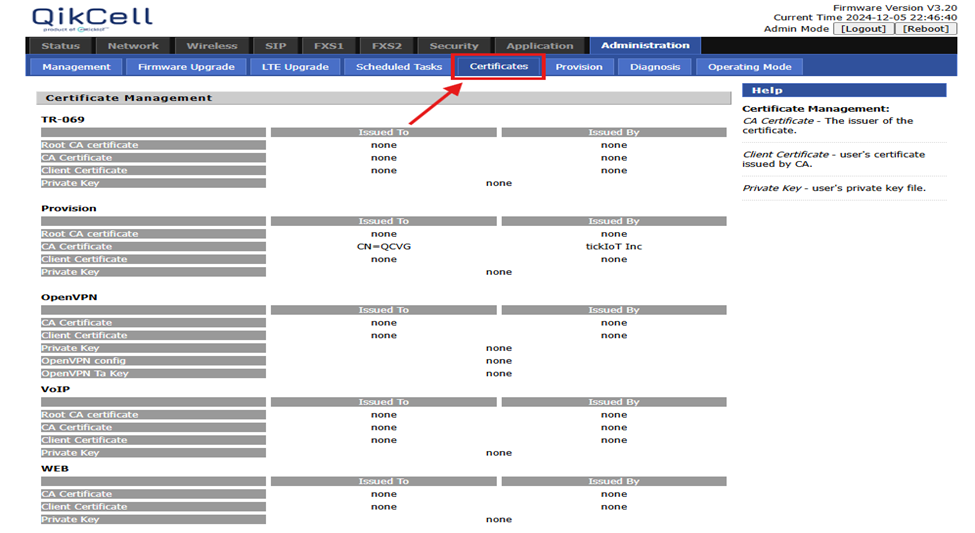

4. In the Administration section, select the Certificates option to access the Certificates.

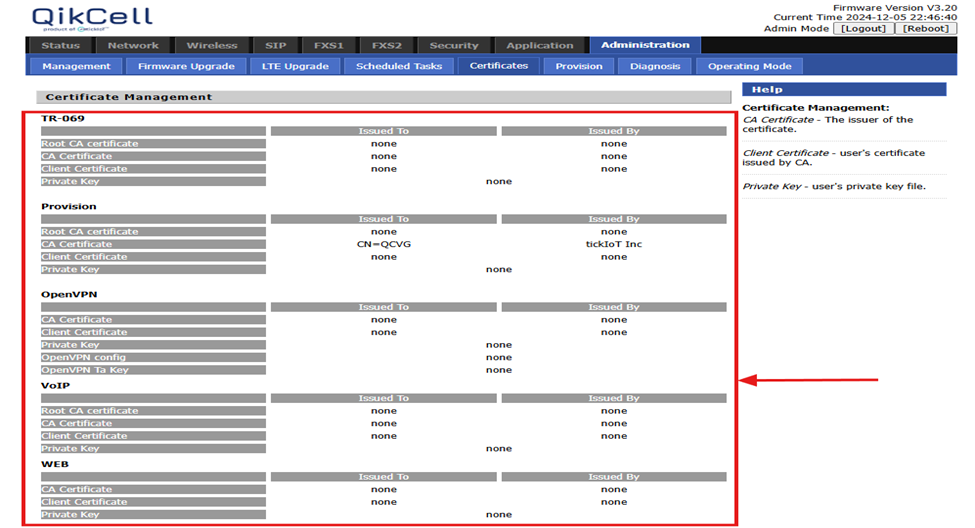

5. In the Certificates section, you will find a list of certificates with their respective Issued To and Issued By details. The certificates are categorized into five types: TR-069, Provision, Open VPN, VOIP, and WEB.

The section also includes a Certificate Update feature, allowing you to update your digital certificates. To update, select the type of certificate from the above categories and upload the new certificate using the Local Upload option.

Example:

• Certificate Update:
• Type of Certificate: Select WEB from the category.
• Local Upload: Choose the updated digital certificate file from your local system and proceed with the upload to ensure secure communication.

This functionality ensures seamless certificate management, enhancing the security and reliability of the RCVx3 device.

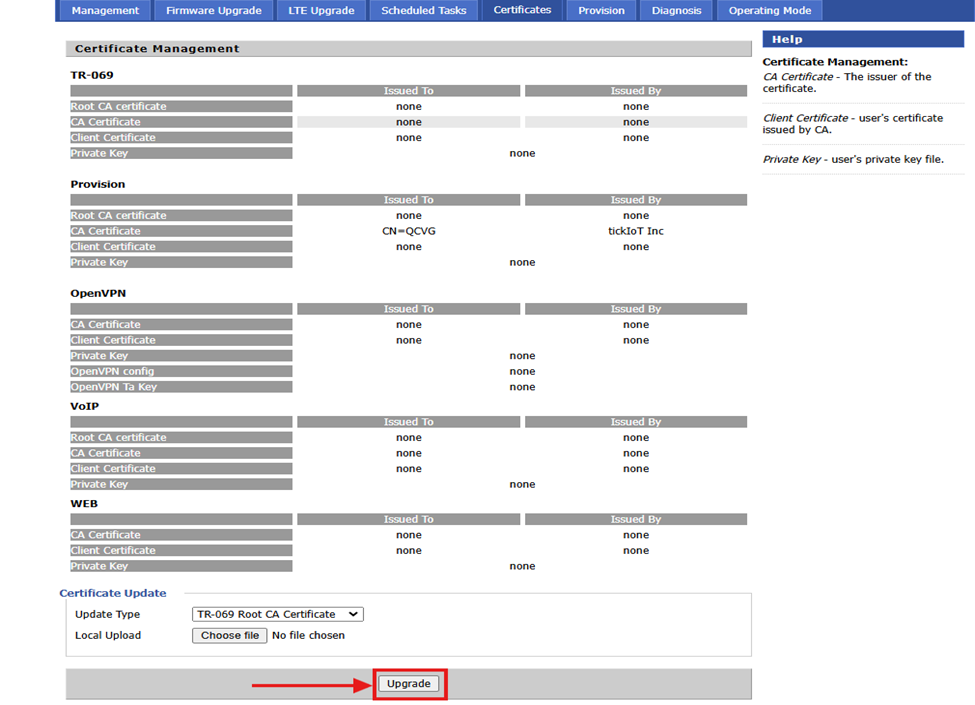

6. If you are uploading the digital certificate using the Local Upload option, once the upload is complete, click on the Upgrade button to update the certificate in the Certificates section.
