How to Reboot the TK920+ device using Local Web portal

How to Reboot the TK920+ device using Local Web portal

To Reboot the device, please follow the steps outlined below.


1. Please power on the device and ensure that the SIM card is inserted properly. Then, using a LAN cable, connect the device to your PC by plugging one end into the PC port on the back of the device and the other end into the LAN port on your PC.



2. Once the LAN connection is established, please open a web browser on your PC and enter the IP address 192.168.224.1 in the address bar. If this IP address does not work, kindly check the IP address directly on the phone by navigating to the Phone Status section.



3. After entering the IP address and pressing Enter, you will be prompted to log in to the local UI. Please enter the following credentials:

Username: celestial

Password: hellotickiot

Then click on Sign in to access the interface.




4.  Once you click the Sign In button, you will see several sections in the local UI, including Basic, Accounts, Network, DSS Keys, Phone, and Contacts. Please click on the Phone section to access the phone settings, as shown in the picture below.

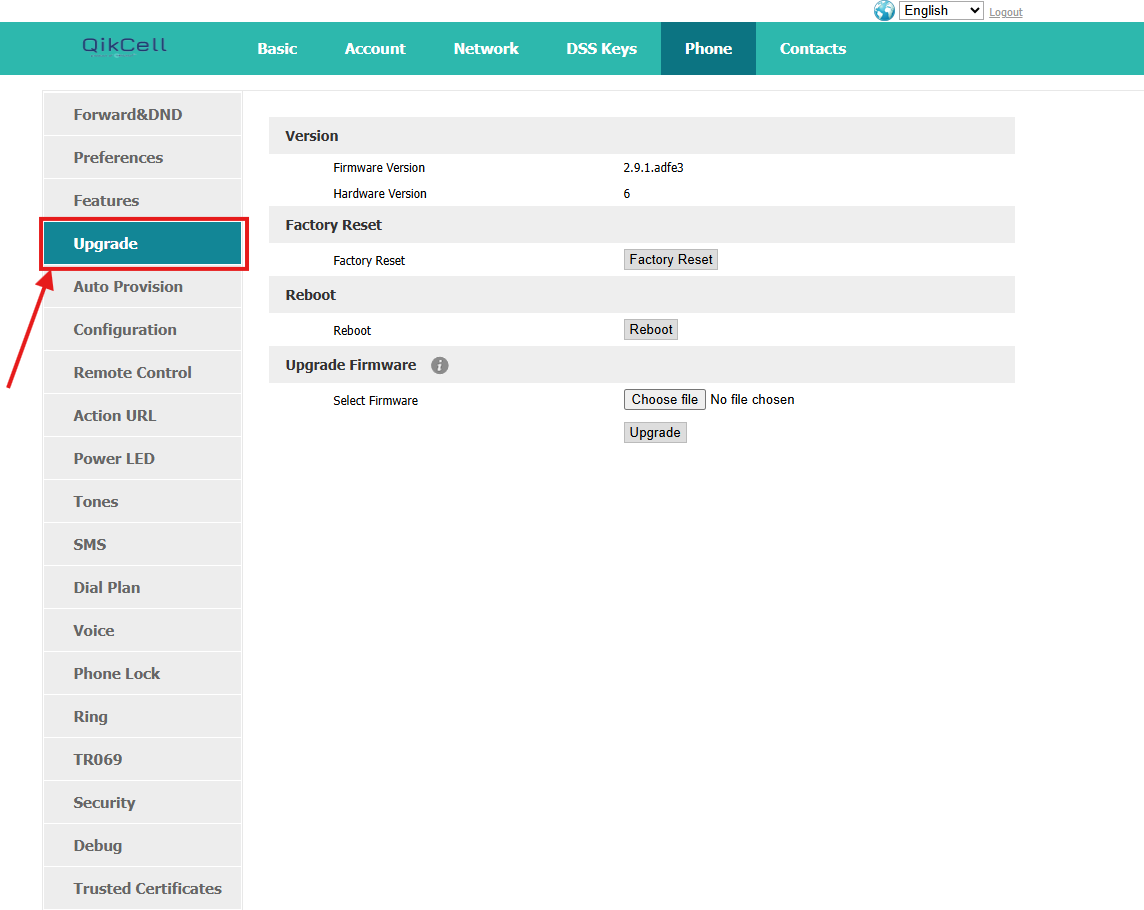

5. Once you have accessed the Phone section, please click on the Upgrade tab, as shown in the picture below.

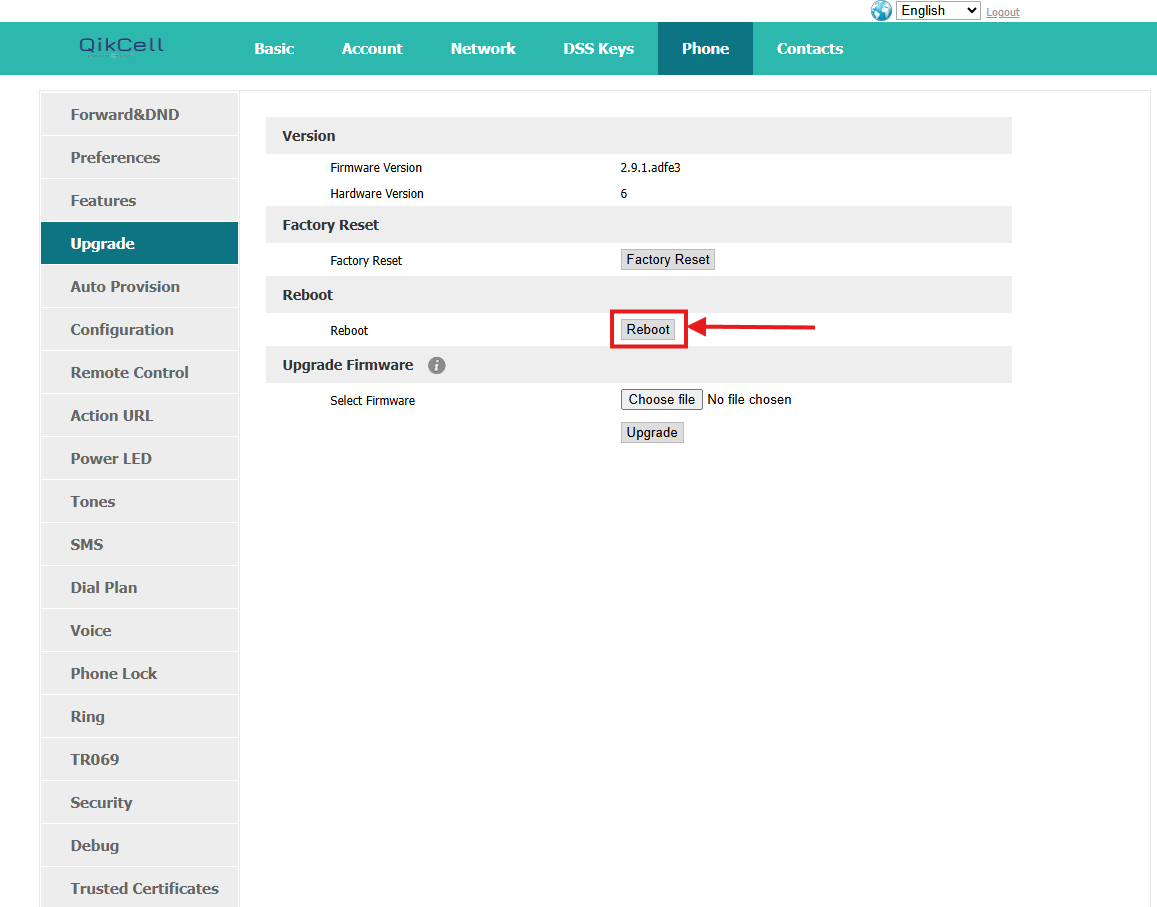

6. In the Upgrade section, click Reboot to restart the device.
