To configure Port settings in local web page please follow the steps below:

1. Open a web browser and enter the URL of the RCVx3 device: 192.168.3.1.

2. If you are logging in for the first time, use the default credentials:

Username: celestial

Password: hellotickiot

3. Select the Network option from the local page.

4. In the Network option, locate DDNS Settings and click on it to access the DDNS Settings configuration.

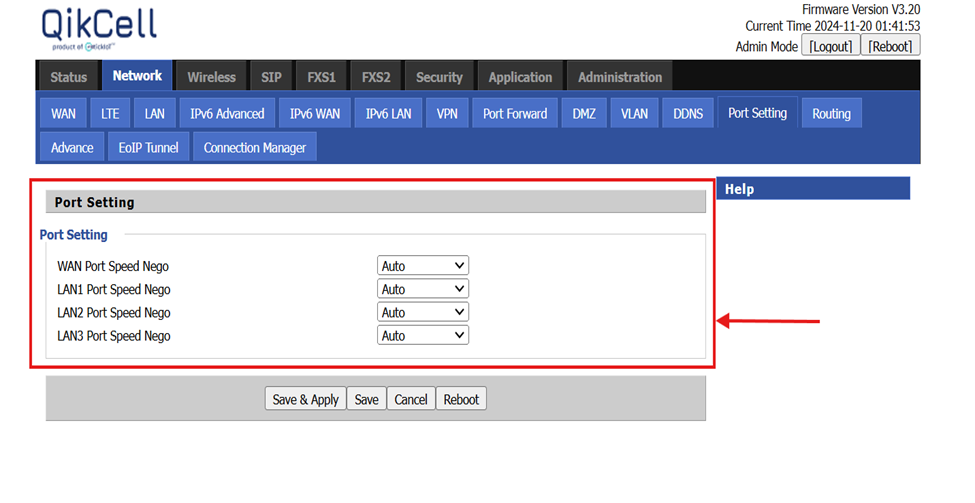

5. To make changes in the Port Settings, you need to configure the following details:

• WAN Port Speed Nego: Select from the available options—Auto, 100 Mbps Full, 100 Mbps Half, 10 Mbps Full, or 10 Mbps Half. For example, choose Auto for automatic speed negotiation or 100 Mbps Full for high-speed connections.
• LAN1 Port Speed Nego: Choose between Auto, 100 Mbps Full, 100 Mbps Half, 10 Mbps Full, or 10 Mbps Half, depending on your network requirements.
• LAN2 Port Speed Nego: Select Auto, 100 Mbps Full, 100 Mbps Half, 10 Mbps Full, or 10 Mbps Half.
• LAN3 Port Speed Nego: Configure this port with options such as Auto, 100 Mbps Full, 100 Mbps Half, 10 Mbps Full, or 10 Mbps Half.

For example, if your network supports high-speed connectivity, you can set the WAN Port Speed Nego to 100 Mbps Full and the LAN ports to Auto for flexible speed negotiation.

6. After completing the changes in the Port Settings, click on the Save & Apply button to save and implement the updated Port Settings configuration.
